Gigabyte GB-BACE-3000 (Rev. 1.0) BRIX/Ultra Compact PC Kit - Black
  • Celeron N3000(1.04GHz, 2.08GHz Turbo), 1x SO-DIMM DDR3, 2.5" HDD Bay, Intel HD, USB3.0, HDMI, MicroSD, VGA, GigLAN, NO OS

IMG 1 of 4
No Longer Available
Part Number:
399551
(?) Brand:
Gigabyte Web Site
Manuf No:
GB-BACE-3000
GBBACE3000
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GBBACE3000, GB-BACE-3000, 4719331251642
GB-BACE-3000 (Rev. 1.0)

BRIX / Ultra Compact PC kit

  • Features 14nm Intel  Celeron N3000 to deliver to the most intuitive and integrated operating systems in the world
  • Supports 2.5 thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
  • Ultra compact PC design 0.69L (56.1x 107.6 x 114.4mm)
  • 1x SO-DIMM DDR3L 1.35V Slots (1333 MHz)
  • Intel  IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card
  • Supports dual displays via a VGA and a HDMI port
  • Gigabit LAN
  • Audio jack (Headphone/MIC)
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)
  • Supports Fan less design
  • Wireless module inclusion may vary based on local distribution.

Redefining the Desktop PC

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.

Intel  Celeron Processor


Based on the Silvermot micro-architecture which utilises the 14nm process technology, these SoC feature significant improvements in computational power, energy efficiency, enhanced graphical and media performance making the BRIX ideal for thin clients, retail transactional clients, and digital signage.

Advanced Features For Power Users

The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, its designed to deliver the most intuitive and integrated operating systems in the world.

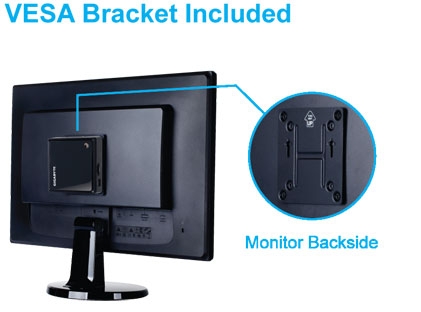

VESA Support

The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.





Specifications

Dimension 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")
Motherboard Size 100 x 105 mm
CPU Intel  Celeron  Processor N3000 up to 2.08GHz
Memory 1x SO-DIMM DDR3L 1.35V slot
1066/1333/1600 MHz
Max. 8GB
LAN Gigabit LAN (Realtek RTL8111H)
Audio Realtek ALC255
Graphics Intel  HD Graphics
HDMI Resolution (Max.) 3840x2160 @ 30 Hz
VGA Resolution (Max.) 1920 x 1200 @60 Hz

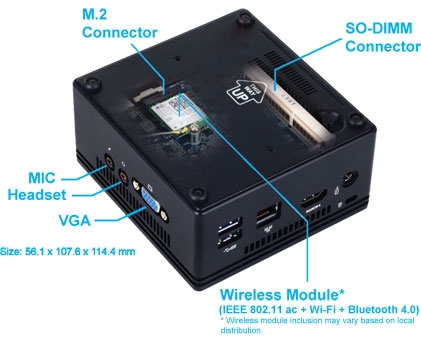

Expansion Slots 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

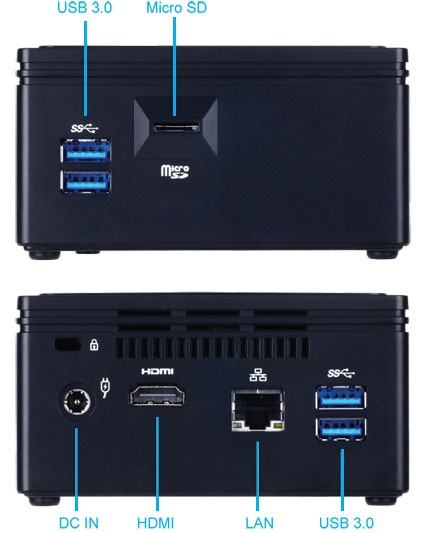

Front I/O 2 x USB 3.0
1 x Micro SD card slot
Rear I/O 1 x HDMI
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply Input: AC 100-240V
Output: DC 19V
2.1A
Side I/O 1 x VGA D-Sub
1 x Audio-out / Mic-In

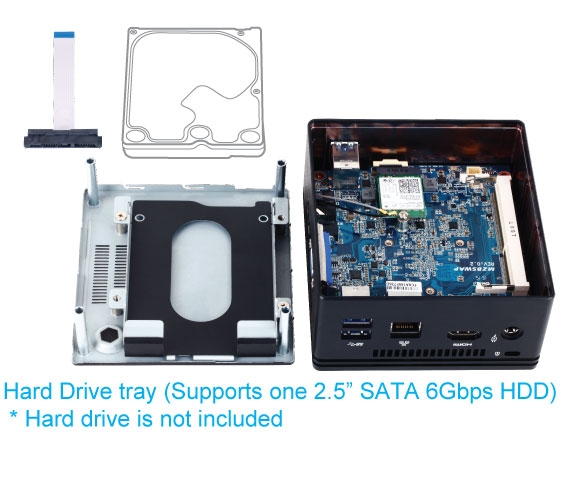

Storage Supports 2.5 thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
VESA Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS WIN7 64bit
WIN8.1 64bit
Environment System Environment Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
